Menşe yeri: | Çin |
---|---|
Marka adı: | iBoard/ OEM |
Sertifika: | CE FCC ROHS |
Model numarası: | LE-32 |
Min sipariş miktarı: | 10 adet |
Fiyat: | USD50-USD3000 per pieces |
Ambalaj bilgileri: | IR dokunmatik çerçeve dokunmatik ekranlar için SKD ihracat kartonları veya plastik boru veya ihracat |
Teslim süresi: | 10 iş günü |
Ödeme koşulları: | L / C, T / T, Western Union |
Yetenek temini: | Aylık 20000 Adet |
Ürün adı: | dokunmatik çerçeve, IR dokunmatik çerçeve, kızılötesi dokunmatik ekran yerleşimi, IR dokunmatik kiti | çözüm: | 32768 x 32768 |
---|---|---|---|
tip: | Kızılötesi dokunma teknolojisi | arayüz türü: | USB, Seri |
Temas noktaları: | 10 Puan, özelleştirilebilir, 1 ~ 40 nokta | boyut: | 22" 32" 42" 43" 49" 50" 55" 65" 70" 75" 80".. |
Uygulama: | Öğretim, toplantı, eğitim, eğitim | İşletim sistemi: | WIN, Android, MAC isteğe bağlı |
Arayüz: | USB 2.0 / 3.0 | Garanti: | 2 yıl |
Malzeme: | Alüminyum alaşımlı çerçeve | renk: | Siyah veya Özelleştirilmiş renk |
Besleme gerilimi: | DC 5V | Güç kaynağı: | usb destekli |

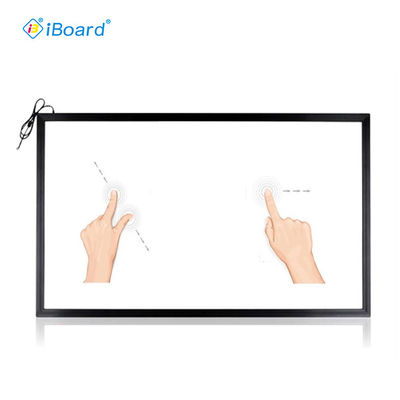

Interactive infrared touch frame is interactive kit which is widely used to convert any displays without touch to an interactive device. It support multi-touch, with smoothly writing experience.
Application
Digital Touch Signage/Touch Kiosk/Touch Screen Monitor/Interactive Video Walls/Touch Table/Vending Machine/Touch Inquiry Machine/Medical Devices/ATM and More...
Available sizes
Size: 21.5”~300”
Customized sizes available
1~40 touch points available
SKD available
Specification
Name | Specification |
Touch Technology | Infrared Touch Technology |
Touch Points | 2, 10, 20, 40 touch points available |
Touch Input Method | Finger, Pointer, Styplus pen or any other Opaque objects |
Touch Interpolation | 32768 x 32768 |
Respond Time | 5-10 ms |
Touch Accuracy | ±2mm (over 90% Area) |
Touch Durability | Unlimited |
Available Size for Touch | Φ5mm |
Supply Voltage | DC+5V±10% |
Operating Current | <200mA for some sizes of some series; ≤500mA for some sizes of some series |

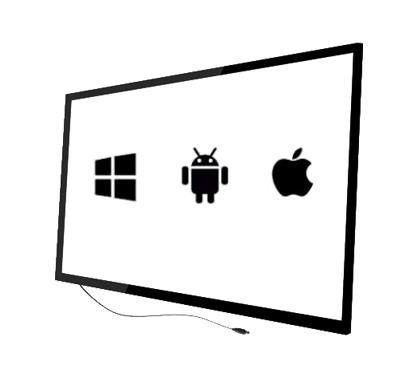

Supporting System | Windows/Mac OS/Linux/Android/Chrome OS |
Packing
For multi-touch screen overlays with glass:

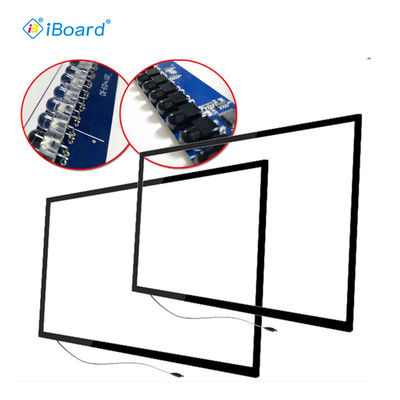

For multi-touch ir touch frame disassemble in SKD mode:
