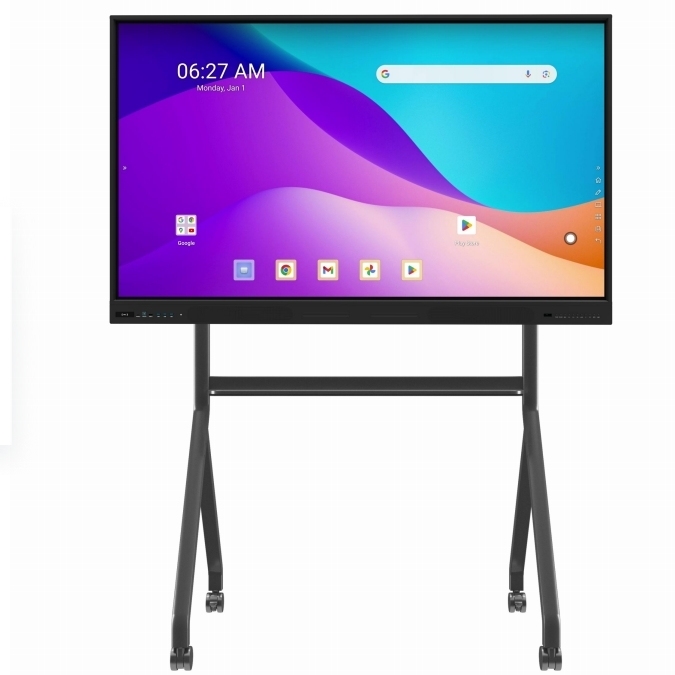

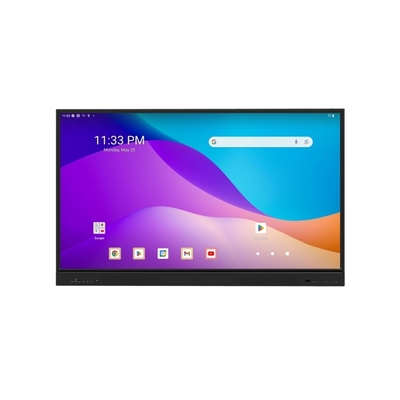

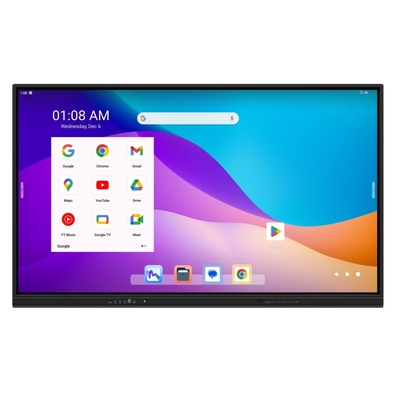

iBoard Google EDLA Certified 75 Inch Interactive Displays Flat Panel Smart Boards
Ürün ayrıntıları:
| Menşe yeri: | Shenzhen, Çin |
| Marka adı: | iBoard |
| Sertifika: | CE, FCC, RoHS, Reach, CCC, OHSAS, ISO9001, ISO14001 |
| Model numarası: | TE-YL-75 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 2 adet |
|---|---|
| Fiyat: | TBD |
| Ambalaj bilgileri: | Karton paketi, ahşap kasa veya ahşap sandık isteğe bağlı |
| Teslim süresi: | 20-30 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Ayda 10000 adet |
|
Detay Bilgi |
|||
| Ekran Boyutu: | 75 inç | Temas Noktaları: | Android için 20 puan, Windows için 40 temas noktası |
|---|---|---|---|
| Renk: | Siyah, Gri, Gümüş beyaz (isteğe bağlı) | Uygulama: | Eğitici Öğretim, Toplantı, Eğitim, Ev |
| İşletim Sistemi: | Android'de inşa edilmiş, Windows isteğe bağlı | Parlaklık: | 400-500cd/m2 |
| Arayüz: | USB, VGA, RS232, HDMI,... | Malzeme: | Alüminyum alaşım çerçevesi |
| Sertifikalar: | CE, ROHS, FCC... | En boy radyo: | 16:9 |
| Ekran Boyutu: | 75" | Nakliye yolu: | Deniz Taşımacılığı, Hava Taşımacılığı, Kamyon Taşımacılığı |
| Garanti: | 1 yıl | Güç Kaynağı: | AC 100-240V, 50/60Hz |
| Çalışma sistemi: | Andriod/windows/linux/mac.etc. | Kesinlik: | 1 mm |
| Mobil stand: | İsteğe bağlı | Kamera: | İsteğe bağlı 48MP veya harici kamerada |
| Mikrofon: | isteğe bağlı yerleşik 8 dizili mikrofon veya başka bir istek | ||
Ürün Açıklaması
75 inch iBoard Google EDLA certified
Interactive Flat Panel Display
Description of 75 inch Interactive displays
iBoard Google EDLA certified Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in latest Android ( 8GB+128GB, 16GB+256GB optional), come with OPS slot for windows system. Camera& mic optional, different frame color, mobile stands and other relative products for option.
Google Enterprise Device Licensing Agreement (EDLA) certification ensures the IFPD has compatibility and optimal performance with Google applications and services, whether it is for education, busess, or entertainment. You can also use (Sheets, Slides, Meet, and more to boost your prouctivity and collaboration.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Easy for after-sales service;
Good quality control;
Firmware upgrades for lifetime.
Specifecation - iBoard YL series (EDLA version)
| Model | TE-YL-75 | |
| Dispaly Backlight | D-LED | |
| Resolution | True 4K UHD (3840 x 2160) @ 60Hz | |
| Brightness | 450 cd/㎡ | |
| Contrast | 1200:1 (Typical) | |
| Screen Size(mm) | 1649.7*927.9 mm | |
| Aspect Ratio | 16:9 | |
| View Angle | 178° | |
| Screen Mode | 16:9/4:3/dot to dot/full screen | |
| Color Depth | 10-bit (1.07 Billion colors) | |
| Panel Response Time | 8 ms | |
| DPI (Pixel Density) | 59 | |
| Working Life | 50,000 Hours | |
| AG Tempered Glass | 4mm, MoHS Level 7 hardness | |
|
Android Specification |
Android 13.0, EDLA certified | |
| CPU: A73*4+A53*4 @ 2.28GHz | ||
| GPU : G52*8 | ||
| WIFI6 Dual Band (2.4GHz & 5GHz)) & BT 2.1 + EDR / 4.2 / 5.0 | ||
| RAM : 8GB | ||
| ROM :128GB | ||
| Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz); | ||
| The file manager is supported, AI function support, built in whiteboard software. | ||
| AirPlay & TranScreen are supported, 9 screen share optional. | ||
| Local and online supportfor music player. | ||
|
Input Ports |
Rear: HDMI x2 (4K@60Hz), USB2.0x1,USB 3.0 x2, TOUCH USB x 2, TF card x1, RS232 x1, RJ45 x1, MIC x1, DP x1 (4K@60Hz), VGA/Audio x1, USB-C x1 (supports USB/touch/image/video 4K@60Hz/fast charge) |
|
| Front: 1 x HDMI2.0 , 1 x USB-C (support USB/touch/image/video 4K@60Hz/ fast charge) , 3 x USB 3.0 , 1 x USB-B (Touch) | ||
| Output Ports | HDMI OUT x1(4K@60Hz), Coxal x1, Headphonex 1 , RJ45 out x1 | |
| Front Button | 1X POWER(on/off) button, or 11 buttons | |
| Voltage | AC(100～240)V-50/60HZ | |
| Speakers | 2x 20W | |
| Power Range | Standby Power<1W | |
| Rated Power<350W | ||
|
Touch Parameter |
Touch Technology | Infared Touch |
| Touch Points | 20 touch points for Android, 40 for Windows | |
| Writing Mode | Finger or any opaque object | |
| Accuracy | <1mm | |
| Response Time | 5ms | |
| Cusor Speed | 180 dot/s | |
| Connection Port | USB 2.0, USB 3.0 | |
| Operating System | Windows/Linux/Mac/Android | |
| Working Temperature | 0℃-40℃ | |
| OPS computer | optional in i5/i7-12/13th, 8GB/16GB+256GB/512GB depends on request. | |
| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB cable*1, Power Cable*1, Remoter*1, Wall mounting bracket | |
| Product sizes(mm) | 1707*1030*85 | |
|
Built in Camera ( optional) |
Optional built in 48MP camera, or AI camera as request | |
| Built in Array Microphone (optional) | 8 array microphones | |
| NFC function (optional) | for login in, device unlock... | |
| Weights (kg) | 52/64 | |
| Cartons (mm) | 1835x1173x165 | |
Remark: For more details of the specification , please contact our sales team osd019@touch-easy.com to know more detials.
All features and specifications are subject to change without notice.
